4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus

Brand Name : Vanwin Tracking

Model Number : VW8058HD

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen,China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T or western Union or Paypal

Supply Ability : 5,000pcs per month

Delivery Time : 2-3 days for samples,15-30 days for large orders

Packaging Details : Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .

Power Supply : 8V-36V wide voltage

Network : 3G/4G WCDMA/EVDO

Type : 8CH Mobile MDVR/MNVR

Storage Card : 1/2TB HDD /SD card

Network port : RJ45

Video Compression : H.265

Alarm : 6CH Alarm inputs, 2CH Alarm output

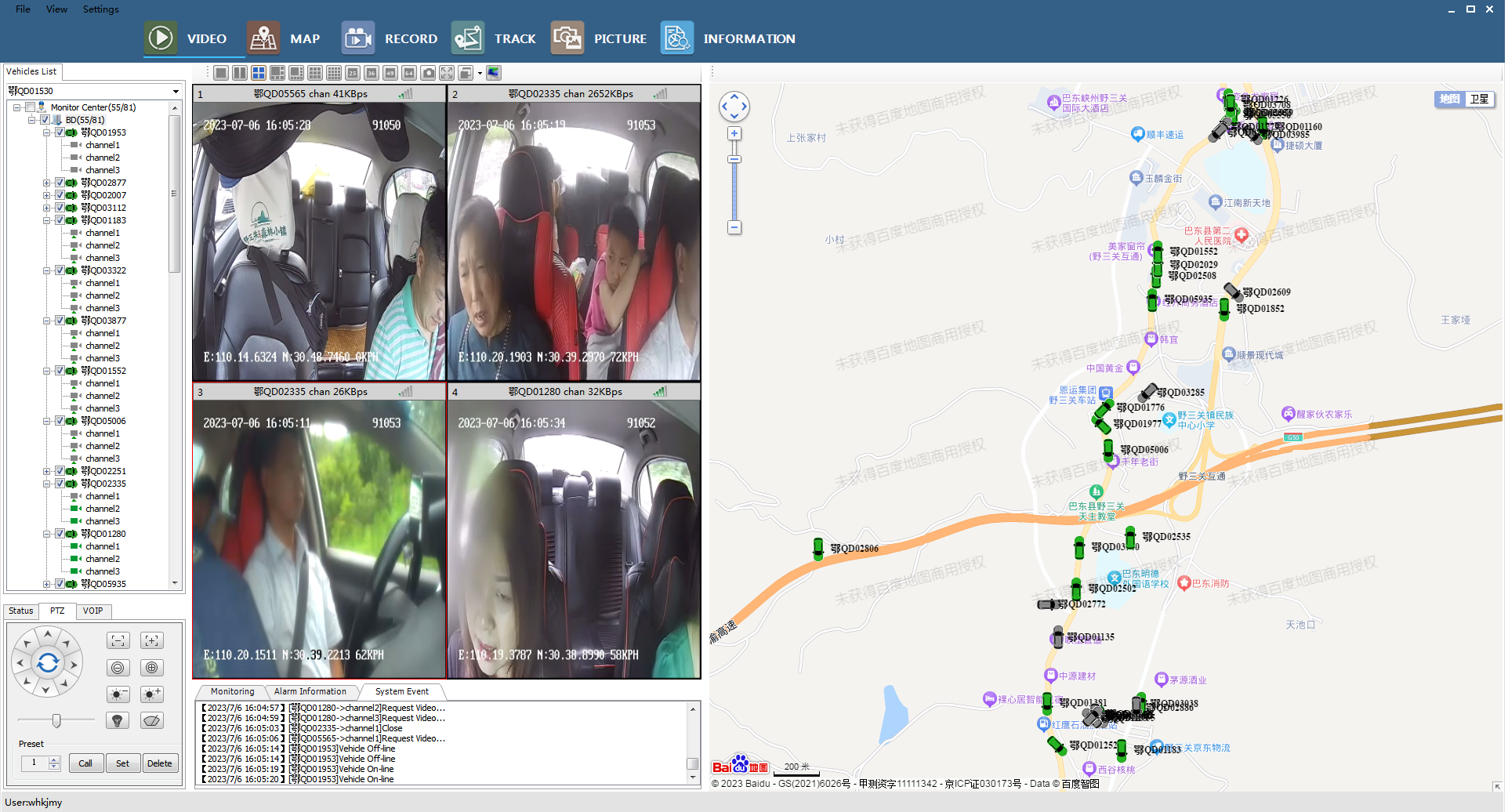

Client software : PC and Mobile Phone supported

Audio Output : 1 channel VGA video output, 1 channel aviation connector Video output

Recording Storage : 1080P 1.9G/hour/channel; 720P 0.8G/hour/channel

Resolution : 720P/1080P

Dimension : 166mm*155mm*137mm

Contact Now

4G GPS Dual SD Card 8 Channel mobile dvr recorder Monitoring WIFI For Truck / Taxi / Bus

Feature:

  • H.265 video compression, multi code stream.
  • Support 8CH 1080P/960P/720P HD real-time video inputs. Also, support 8CH analog cameras inputs..
  • 1CH VGA output is optional.
  • With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
  • 8-36V wide voltage power supply, super low power consumption. With overload/ under voltage/ short-circuit/ reversing protection, support all vehicles.
  • Support dual SD cards, at maximum 256G for single SD card
  • With watchdog abnormal restart protection function, it can better protect the machine and video.
  • Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
  • Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
  • Support 8CH alarming inputs and 1CH independent alarm input.
  • Optional for 1CH RS232 Serial port or 1CH RS485 extension.
  • Support GPS/G-Sensor.
  • Support remote operation and monitoring by 4G.
  • Support Wi-Fi and automatic data download.
  • Support ministry of communications agreement, support SMS remote configuration and equipment control.
  • Support voice broadcast, intercom and text schedule dispatch.
  • Support fuel sensor, temperature sensor, POS, LED advertising screen.
  • Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
  • With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
  • Support all vehicles, including bus, taxi, truck, school bus, etc.
  • Extended function(Optional):ADAS+DMS (Advanced Driving Assistance System+Driver Monitoring System)

Main Specifications

Item
Device parameter
Performance
System
Main processor
Hi3520DV400
Operating system
Embedded Linux operating system
Operating language
Chinese/English/Russian
Operating interface
Graphical menu operation interface, support mouse operation
Password security
two-level management of user password and administrator password
Audio
&
Video
Video standard
PAL/NTSC
Video compression
H.264/H.265
Image resolution
1080P/720P
Playback quality
1080P/720P
Combination
various ways
Decoding capability
8ch 1080P real time
Video quality
1 to 4 levels can be configured
Screen display
support 1, 2, 3, 4 screen display
Audio Compression
Not Supported
Recording method
video recording
Recording & Playback
Recording mode
manual, alarm
Video bit rate
4-level picture quality optional
Audio bit rate
8KB/s
Storage media
Hard Disk+SD card
Video query
Search by channel and video type
Local playback
one-way, by time
Firmware upgrading
Upgrading mode
manual upgrade, remote upgrade
Upgrading method
USB interface, network
Interface
Video input
4-way 6-pin aviation header interface
Video output
1 channel VGA video output, 1 channel aviation head video output
Alarm input
4 trigger alarm inputs (four configurable positive/negative triggers)
Disk interface
2.5-inch hard drive, up to 2TB
SD card
1 SDXC high-speed card (maximum support 512G
USB interface
1 USB 2.0 (support full mouse operation, USB delay self-test)
Ignition input
1 ACC signal
Serial port
1 channel 232
LED Indication
PWR/REC/SD/GPS/VLSS/ALM
Disk lock
1
GPS
Supports antenna insertion/removal/short circuit detection
3G/4G
Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
Others
Power input
8~36V DC
Power output
12V 2A
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 - 70℃
Storage
1080P 1.9G/hour/channel
720P 0.8G/hour/channel
Dimension
166mm*155mm*137mm

Product Photos

4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus

Application

4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus

How to install?

4G GPS Dual SD Card 8 Channel Mobile DVR Recorder Monitoring WIFI For Truck / Taxi / Bus

Advantage of 3G Mobile DVR

1. The original chip

Further Video Recorder, each of which uses the original industrial-grade chip, can ensure stable operation in the severe cold and heat environment.

2. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

3. Support screen switching

Supporting reverse screen enlargement, four-way video switching, providing technical support.

4. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC 8V-36V voltage.
